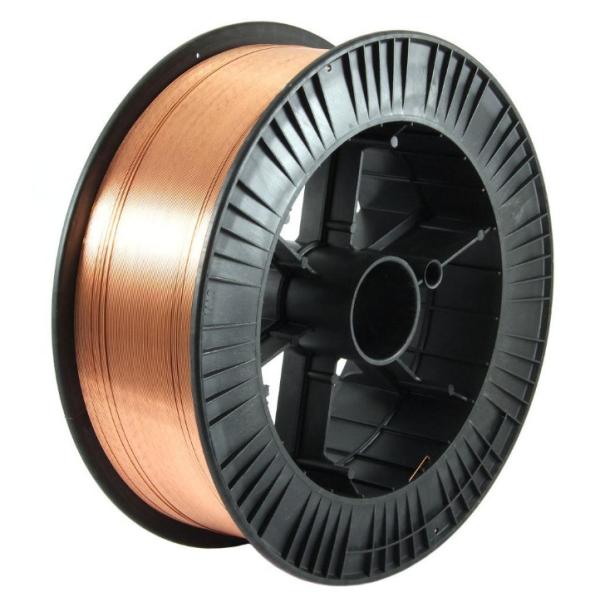

Name:0.8mm 0.9mm 1.0mm Dia E70S-6 Mild Steel MIG Wire 33 lb. Spool co2 welding wire
Description:
Tensile strength is 70,000 PSI. Polarity is DCEP reverse polarity. Required shielding gas is argon/CO2 mix. Diameter is 0.035 in. (0.9 mm). The weight is 33 lbs. (14.97 Kg). MIG wire has a classification of ER70S-6. The (ER) stands for electrode or rod. The (70) means tensile strength, 70,000 PSI. (S) Stands for solid wire and the (-3) or (-6) is the chemical composition and shielding gas required. Forney wire is classified as a -6 wire. This makes it easier to use on less than clean material that may have some rust or dirt.
Product Parameter
Chemical composition of low cost mig co2 welding wire er70s-6:
| | C | Mn | Si | S | P | Cu |
| Standard value | 0.06-0.15 | 1.40-1.85 | 0.80-1.15 | ≤0.035 | ≤0.025 | ≤0.50 |
| Sample value | 0.08 | 1.51 | 0.92 | 0.020 | 0.016 | 0.20 |
Chemical composition of deposited metal:(%)
| C | Mn | Si | S | P | Cu |
| 0.07 | 1.27 | 0.76 | 0.014 | 0.015 | 0.15 |
Mechanical properties of deposited metal:
| | Tensile strength δ(Mpa) | Yield Point δ0.2(Mpa) | Elongationδ5(%) | AKV Impact Value(J) | Shielding gas |
| Standard value | ≥500 | ≥420 | ≥22 | ≥27(-30℃) | CO2 |
| Typical value | 558 | 472 | 27 | 98 | CO2 |
Diameter&Recommended Current(AC/DC):
| Dia(mm) | φ0.80 | φ0.90 | φ1.00 | φ1.20 | φ1.60 |
| Welding Current(A) | 40-140 | 50-170 | 70-250 | 80-350 | 170-550 |
| Arc Voltage | 16-21 | 16-25 | 17-27 | 18-30 | 23-43 |
Feature:
- All position copper coated welding wire containing a high level of manganese and silicon to produce welds on dirty or rusty steel
- High silicon content provides fluidity of the weld puddle providing smoother bead appearance and minimizing post weld grinding
- Superior wire surface finish for best feed ability and arc performance, increased manganese and silicon provide excellent cleaning action
- Butt and fillet welding of carbon steel sheet and plate in industrial, farm, construction and automotive equipment applications
- Requires CO2 or argon/CO2 shielding gas (not included)
Production Process
Steel Wire Rod(Rolled Steel Wire)→Rust Cleaning→First Drawing Process→Second Drawing Process→
Copper Plating Steel Wire→Drawing and Winding→Finished Product
Packaging:
5kg/spool, 1spool/carton, 250cartons/pallet
15kg/spool, 1spool/carton, 72cartons/pallet
250kg/drum, 4drums/pallet
350kg/drum, 4drums/pallet
Shipping:
We will deliver the products within 15 days after receiving the deposit.
|
|

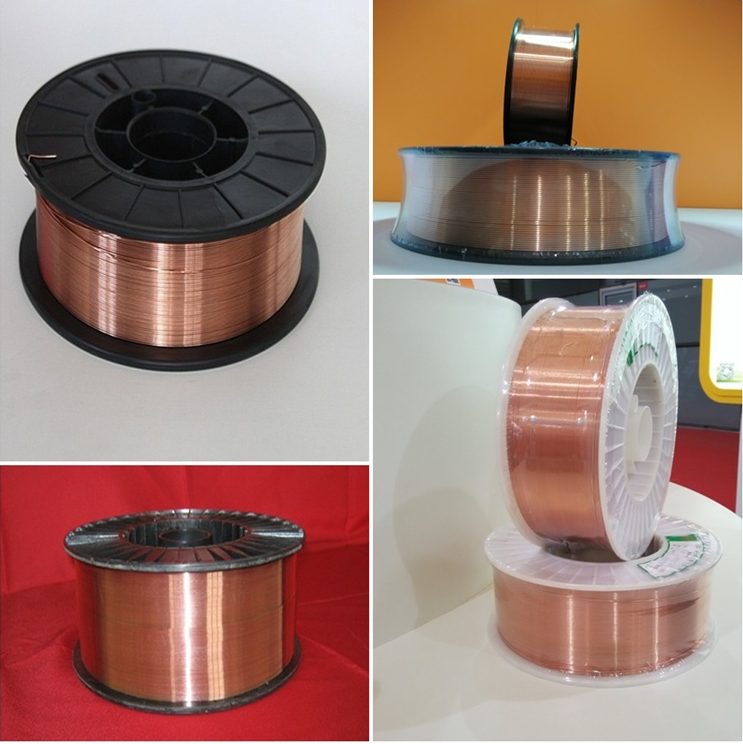

0.8mm 0.9mm 1.0mm Dia E70S-6 Mild Steel MIG Wire 33 lb. Spool co2 welding wire Images
|
