Factory CO2 Welding Wire 0.8MM 0.9MM 1.0MM 1.2MM / MIG Welding Wire AWS ER70S-6

Name: Factory CO2 Welding Wire 08MM 09MM 10MM 12MM MIG Welding Wire AWS ER70S6
Brand: xunzhuo
Price: 600 USD

Quality Factory CO2 Welding Wire 0.8MM 0.9MM 1.0MM 1.2MM / MIG Welding Wire AWS ER70S-6 wholesale

Brand Name : xunzhuo

Model Number : co2 gas shield welding wire er70s-6

Certification : ISO CE AWS SGS BV DNV, CCS, ABS, LR, DB, TUV, KR

Place of Origin : China

MOQ : 5Tons

Price : USD600-1000/Tons

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000tons per month

Delivery Time : 7-15days

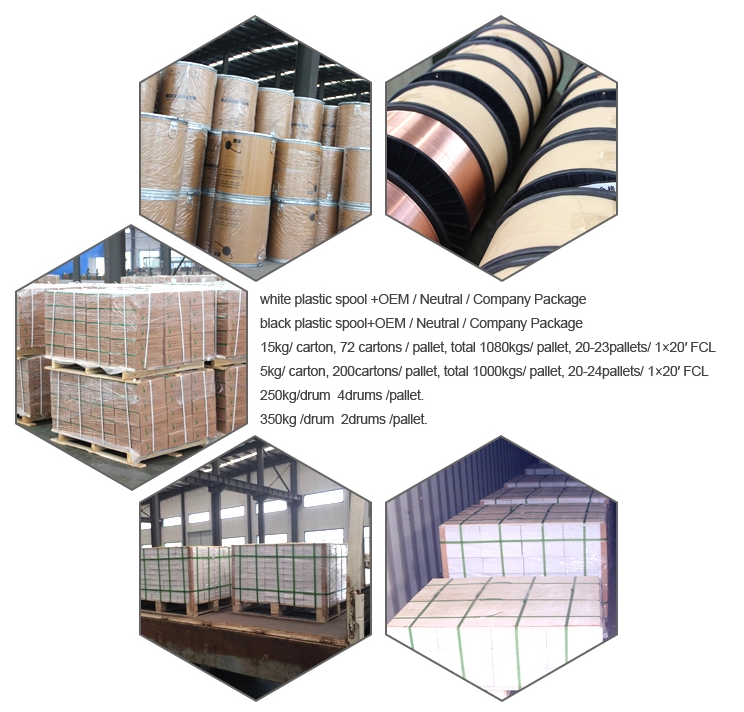

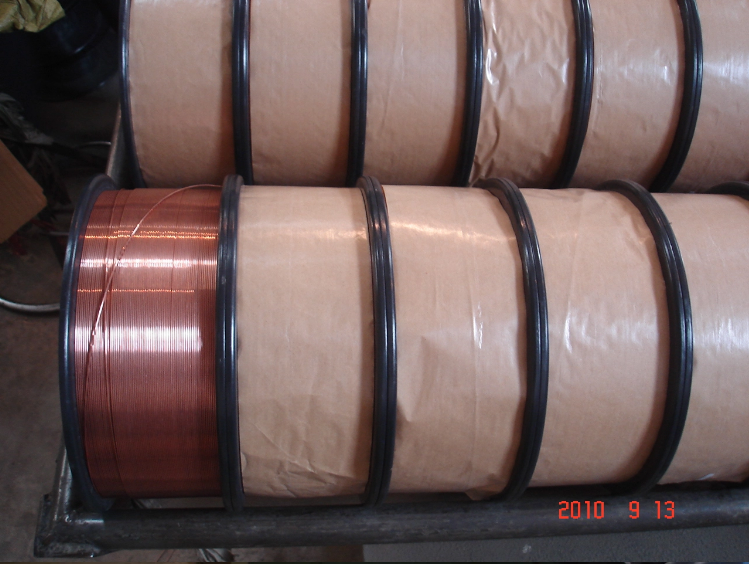

Packaging Details : 5kg/spool 15kg/spool 20kg/spool

Material : Copper / Copper Alloy

Weight : 1kg , 5kgs , 15 kgs , 20 kgs

Product name : welding wire ER70S-6

Standard : AWS A.5.18 ER70S-6

Package : spool/carton/pallet

Name : ER70S-6 CO2 Welding Wire

Diameter : 0.6mm-1.6mm

Application : vehicles , bridge , building , mechanical,instruction

Certificate : : DNV, CCS, ABS, BV, LR, DB, TUV, KR,CE

OEM : Accept OEM

Feature : Excellent Welding Performance

Spool materials : Plastic/Metal

Contact Now

Factory CO2 Welding Wire 0.8MM 0.9MM 1.0MM 1.2MM / MIG Welding Wire AWS ER70S-6

Product Description:

ER70S-6 welding wire is a low alloy steel gas shielded welding wire,protected with pure Co2 or Ar+CO2 gas.Stable arc,low spatters,excellent fabrication weldability and lowsensitivity of weld gas

porosity can be obtained during welding.It is suitable for all position welding especially with large welding current range.It can show very good welding performance.

Chemical Composition of Wire(%)

	C	Mn	Si	S	P	Cu	Others
Standard(GB)	0.06-0.15	1.40-1.85	0.80-1.15	≤0.035	≤0.025	≤0.50	≤0.50
Standard(TUV/CE)	0.06- 0.14	1.30-1.60	0.70-1.0	≤0.035	≤0.025	≤0.35	≤0.50
Type	0.08	1.51	0.92	0.020	0.016	0.20	0.02

Mechanical Proper ties of Deposited Metal

Tensile strength(MPa)	Yield Point(MPa)	Elongationδ5(%)	Impact V-Notch (J)(-20oC)	Shielding Gas
≥500	≥420	≥22	≥27	100%CO2
560	500	27	102	100%CO2

Specification & Recommended Current Range(DC+)

Diameter(mm)	φ0.8	φ1.0	φ1.2	φ1.6
F Current(A)	40~180	50~220	80~350	170~550
V Current(A)	40~140	50~160	50~180
OH Current(A)	40~120	50~160	45~180

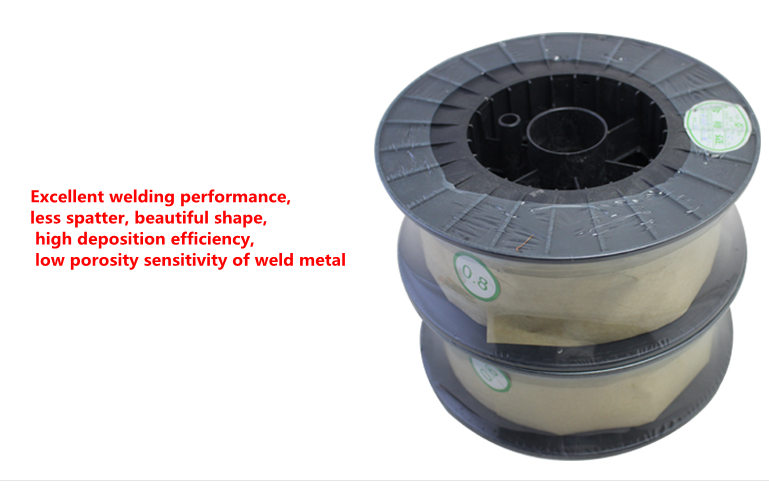

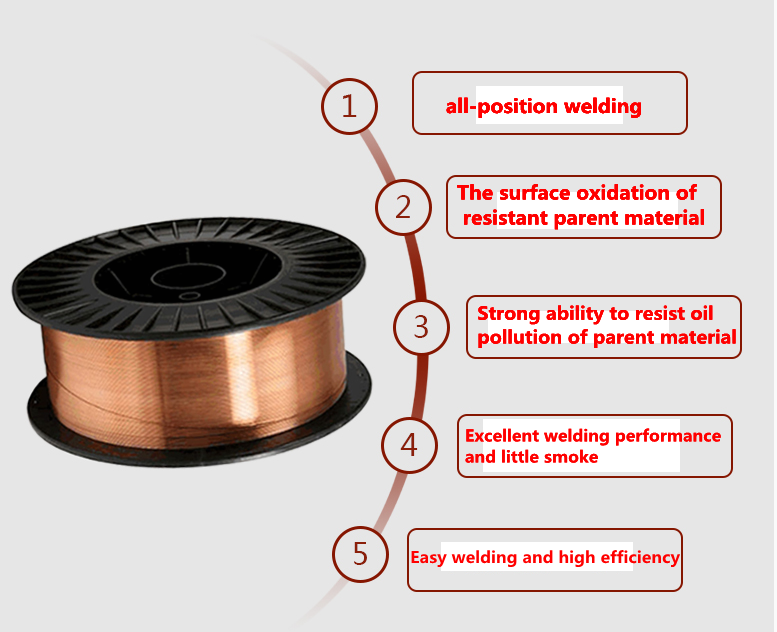

Features:

1.It has super mechanical performance for low cost mig co2 welding wire er70s-6, such as fast melting rate,high depositing efficiency,

stable arc,perfect seam,small weld metal stomatal sensitivity

2.When working,it has little spatter, reduce smoke production

3.After work,the slag is easy to remove

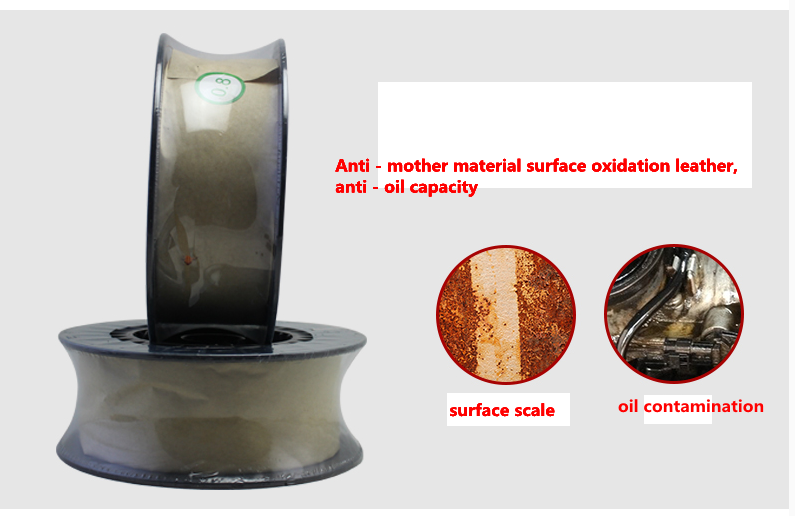

4.It also has excellent rust protection and electrical conductivity

5.And low hydrogen content in the weld and lower nitrogen content, excellent crack resistance

Application :

Applicable for single pass and multi-pass welding of carbon steel and 500 MPa grade low alloy steel and is widely used in such fields as automobile industry,

construction machinery manufacturing, ship building, metallurgical and mining equipment manufacturing, bridge building,

petrochemical industry and pressure vessel manufacturing, etc. Also applicable for high-speed welding of sheets and pipeline steel.
