Name:factory supplier Er5356 Aluminium and Aluminium Alloy Welding Wire with Ce CCS ISO
Description
ER5356 is a kind of aluminium alloy welding wire containing 5%magnesium, it is the extensive use welding materials which is applicable for welding aluminium alloy or the surface ofaluminium alloy containing 5% magnesium. This product can also handle by anodic oxidation of welding provides a good match.

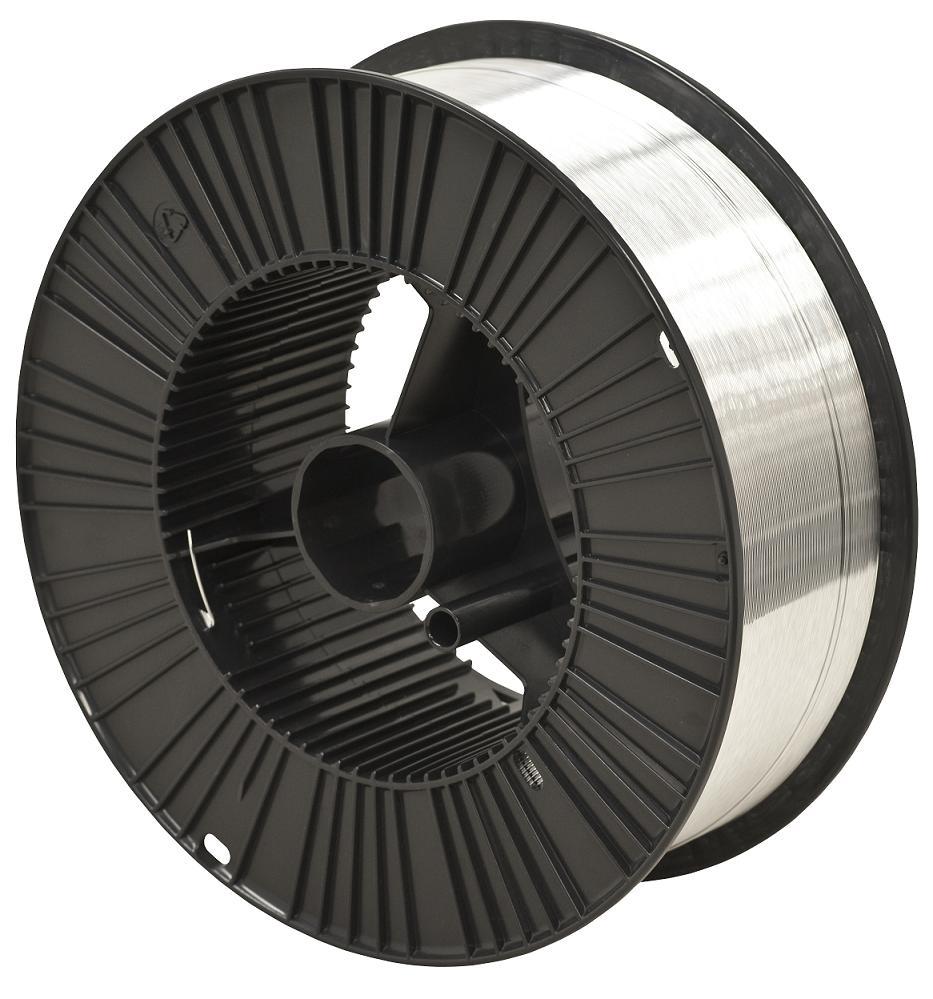

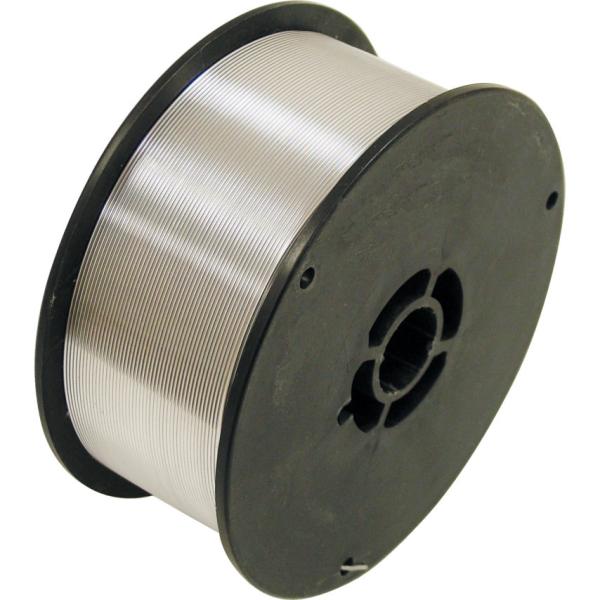

MIG wire Specification : 0.8mm;0.9mm;1.0mm;1.2mm;1.6mm Weight : 6kg/7kg/9kg per spool

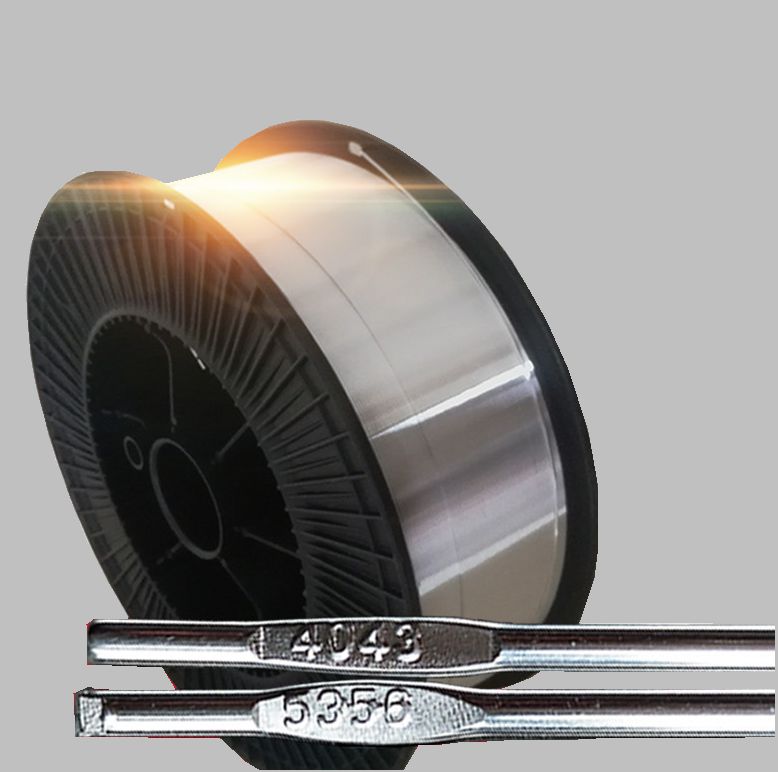

TIG wire Specification : 1.6mm;2.0mm;2.4mm;3.0mm;4.0mm;5.0mm Weight : 5kg/10kg/20kg per box
Chemical composition(%)
| Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al | Be | others |
| GB/T Standard | ≤0.25 | ≤0.40 | ≤0.10 | 0.50-2.0 | 4.5-5.5 | 0.05-0.20 | ≤0.10 | 0.06-0.20 | margin | ≤0.0003 | single≤0.05 total≤0.15 |
| Sample test value | 0.05 | 0.13 | 0.08 | 0.12 | 4.85 | 0.07 | 0.008 | 0.1 | margin | 0.0001 | / |
Mechanical property of deposited metal (as welded)
| Tensile Strength Rm/MPa | Yield strength Rel/p0.2 MPa | Percentages elongation after fracture A (%) | Shield gas |
| 265 | 150 | 20 | 100%Ar |
| Welding Method:MIG |
Physical properties of deposited metal
| The range of melting temperature(ºC) | Density(g/mm³) |
| 571-635 | 2.64 |
| Dry elongation: 15-25mm |
Shield gas: 99.99%Ar, 75%Ar+25%He, 50%Ar+50%He
|
Welding reference parameters(Current polarity:MIG:DC+ TIG:AC)
| MIG | Welding wire diameter(mm) | 1.2 | 1.6 | 2.0 |
| Welding current(A) | 180-300 | 200-400 | 240-450 |
| Welding voltage(V) | 18-26 | 20-28 | 22-32 |
| TIG | Welding wire diameter(mm) | 1.6-2.5 | 2.5-4.0 | 4.0-5.0 |
| Welding current(A) | 150-250 | 200-320 | 220-400
|
| AWS Code | chemical composition(%) |
| Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti |
| ER1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.06 | 0.03 |
| ER1100 | 0.95 | 0.95 | 0.05-0.20 | 0.05 | - | - | 0.10 | - |
| ER4043 | 4.5-6.0 | 0.80 | 0.30 | 0.05 | 0.05 | - | 0.10 | 0.20 |
| ER4047 | 11.0-13.0 | 0.80 | 0.30 | 0.15 | 0.10 | - | 0.20 | - |
| ER5356 | 0.25 | 0.40 | 0.10 | 0.05-0.20 | 4.5-5.5 | 0.05-0.20 | 0.10 | 0.06-0.20 |
| ER5183 | 0.40 | 0.40 | 0.10 | 0.5-1.0 | 4.3-5.2 | 0.05-0.20 | 0.25 | 0.15 |
| ER5556 | 0.1 | 0.3 | 0.05 | 0.55-8.0 | 4.7-5.2 | 0.05-0.10 | 0.09 | 0.05-0.10 |
Application
Welding wire used to weld ship building steel(A,B,D,E,A36,D36,E36)and equivalent mild steel or 550Mpa grade mild alloy steel, such as container building, construction machine, railway construction, pressure vessel for semi-auto or automatic gas shielded welding wire.
Top Features
- Welding Filler Wire
- Spray and Flame Metallizing Wire
- Similar to AlSi12 (Germany), BS N21 (United Kingdom)
- Lower melting point and higher fluidity than 4043 wires
- Can be used as a substitute for 4043 wires to increase silicon in the weld metal, minimize hot cracking and produce higher fillet weld shear strength
- widely used for brazing of aluminum, Al-Mn, Al-Si-Mg alloy materials
Company information:

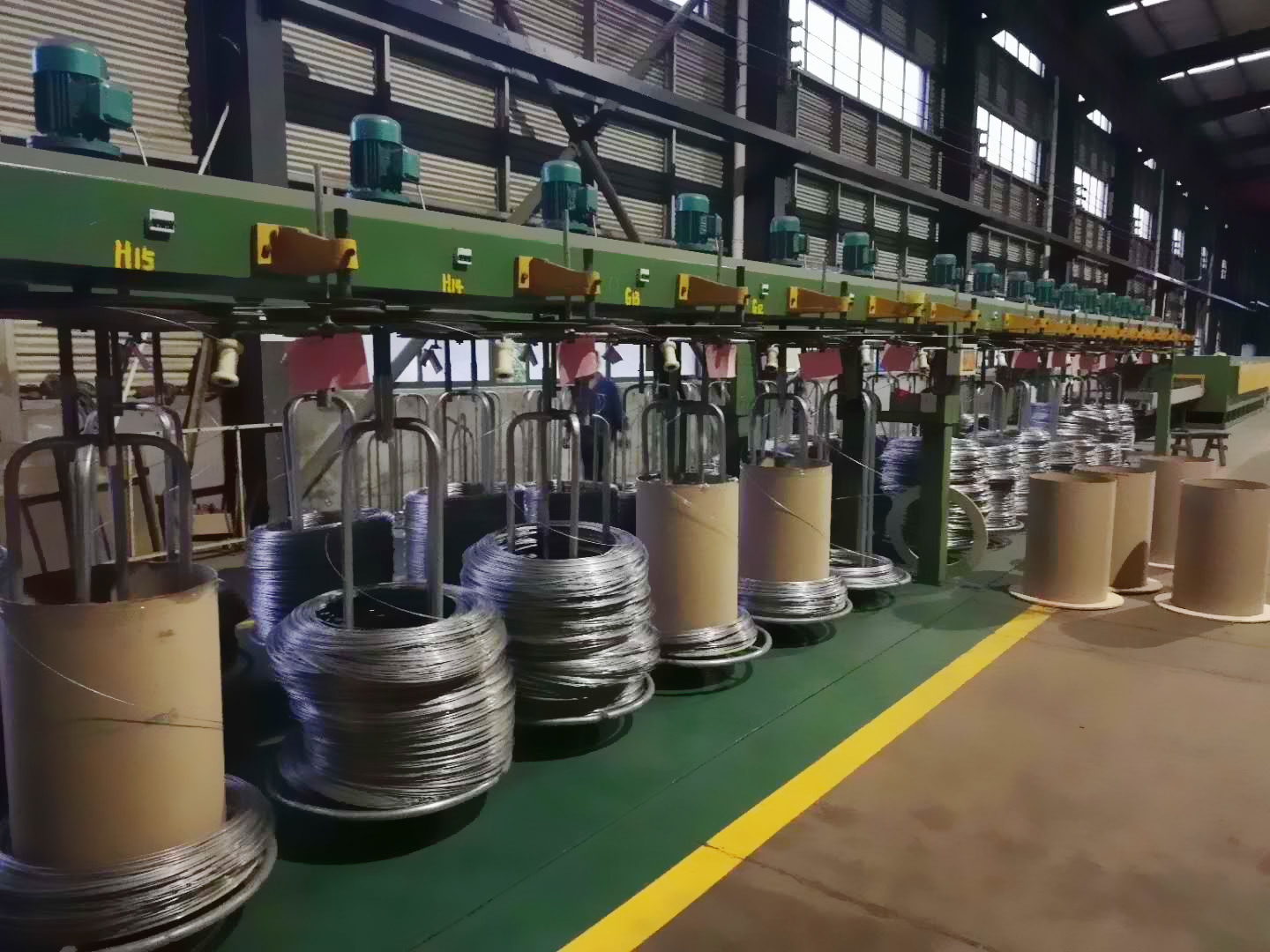

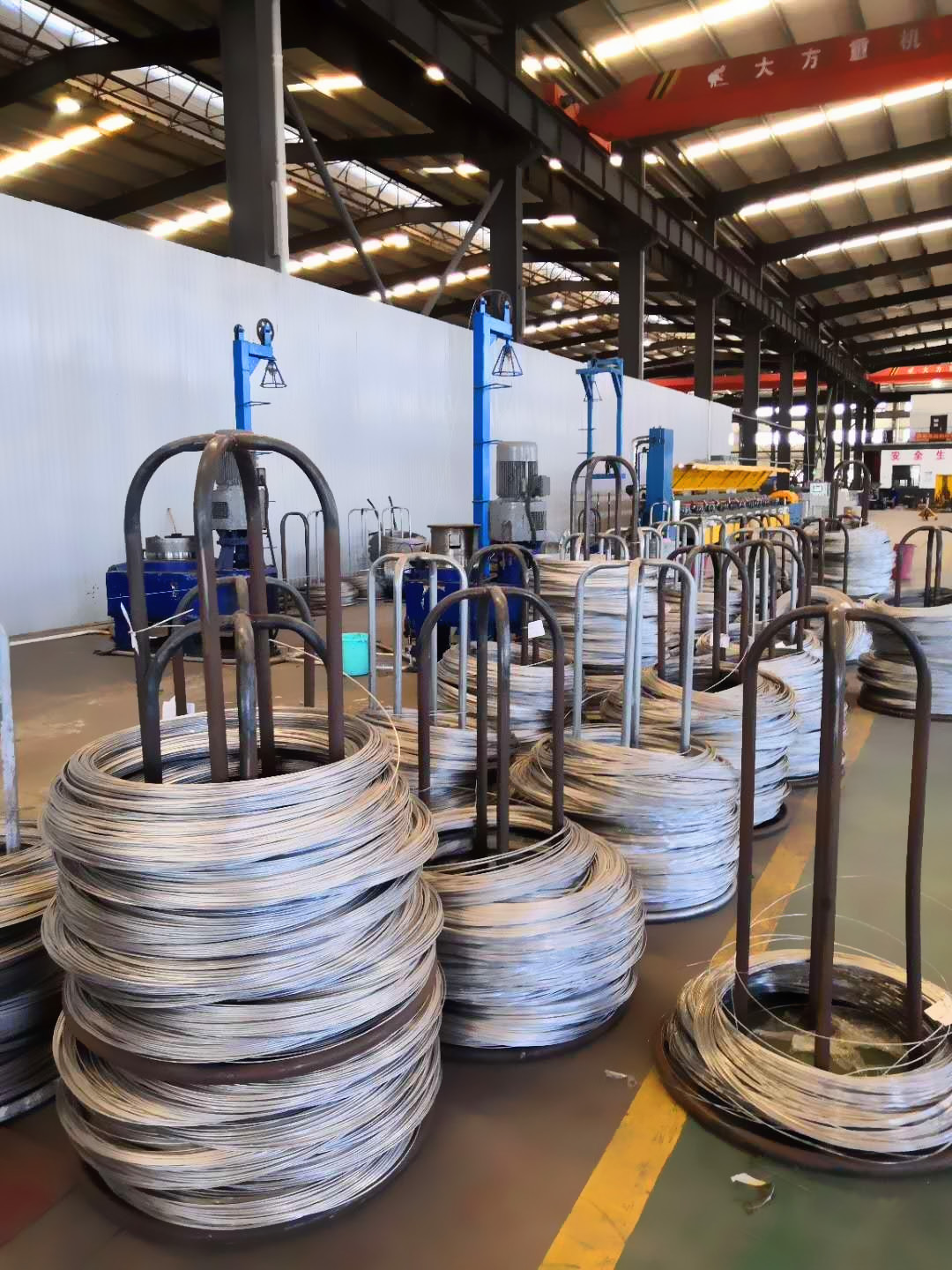

our factory is a 14 years aluminum welding materials manufacturer in China. Our Mig&Tig aluminum alloy welding wires and rods are selling very well in both domestic and oversea market. If any new inquiry, please feel free to contact us, we'd like to offer our latest price.
Our Service:
1. Strict quality control.
2. Best price offer.
3. On-time delivery.
4. Sample offered.
5. OEM and ODM accepted
Attention
- Please remove the oxide film and grease of edge-weld and surface of welding wire from the welding parts Strictly , or it will form lack of fusion on welding line and cause blow hole, slag inclusion and such other defects.
- To keep weld penetration without collapsing, please hold the melt metals by cushioning when weld the wire
|
|
Aws Er5556 Er5183 Er4043 Aluminium and Aluminium Alloy Welding Wire Images
|
