Name of commodity: ER70S-6 CO2 MIG Welding Wire(High Quality) in Drum
Grade: AWS A5.18 ER70S-6 ( 2005 )
Size: 0.8~1.6mm
Standard: GB/T 8110 ER50-6/ AWS A5.18 ER70S-6/JIS Z3316 YGT50
Certification: ISO9001, ISO14001, OHSAS18001, SGS, ABS, NK, CCS, BV, DNV, KR, BKI, LR and so on.
Packing Specs:
| Name of Commodity | Grade | AWS | Diameter | Package | Remarks |
| Welding Wire | ER50-6 | ER70S-6 | 0.6mm | 5/15/20kg/spool, or in 250/350kg/ drum | Suggestion: 25MT/1x20'GP |
| 0.8mm |
| 0.9mm |
| 1.0mm |
| 1.2mm |
| 1.6mm |
| 2.0mm |
| ER50-G | ER70S-G | 1.0mm | 15/20kg/spool |
| 1.2mm |
| 1.6mm |
Key Parameter:
Welding Wire Chemical Compositions:
| C | Mn | Si | P | S | Ni | Cr | Cu | V |
| 0.08 | 1.51 | 0.89 | 0.015 | 0.013 | 0.016 | 0.021 | 0.18 | 0.003 |
Welding Wire Mechanical Properties:
| Tensile strength Rm(Mpa) | Yield strength Rel or Rp0.2(Mpa) | Elongation(%) | Ballistic work(J) | Test Temp. | Shielding Gas |
| 545 | 452 | 29 | 91 | -30ºC | CO2 |
Welding Wire Diameter and Reference Voltage and Current:
| Welding Wire Diameter | 0.8mm | 1.0mm | 1.2mm | 1.6mm |
| Welding Current | 50~120A | 70~180A | 80~350A | 140~500A |
| Welding Voltage | 15~22V | 18~24V | 18~34V | 20~42V |
| Reference Current | 100A | 150A | 280A | 350A |
Welding Wire Main Application:
widely used in the steel structure welding for the coal mine machinery, ships, engineering machinery,bridges, pressure vessels, building construction and etc.
Welding Wire Excellent Performances:
1. made up of carbon steel and low-alloy steel
2. characterized with the execllent welding performance
3. stable feeding and beautiful wedling seam
4. relatively moderate welding smoke and splash
5. with liquidity and crack resistance rather superior
6. thin welding slag and easy to be peeled off
7. the welding seam holds high tensile strength and excellent low-temperature impact resistance performance.
8. applied for all-position welding and a larger current range.
Featured Welding Wire Category:
1. Welding Wire
2. CO2 Gas Shield Welding Wire
3. MIG Welding Wire
4. MAG Welding Wire
5. TIG Welding Wire
6.ER70S-G Welding Wire
7. ER70S-6 Welding Wire
8. ER50-6 Welding Wire
9. Submerged Arc Welding Wire
10.H08A Welding Wire
11. EL12 Welding Wire
13. Welding Machine
14. Welding Electrode
15. Welding Rod
16. Steel Rod Wire
17. Round Bar
18. PC Strands

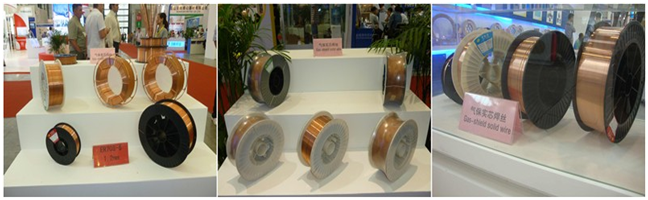

Fair Show:
Trade Terms and Conditions:
1. Terms of payment: L/C at sight or 30% T/T in advance, the balance against the copy of B/L
2. Port of loading: Qingdao, CN
3. Package: 5kg,15kg,20kg/spool
3.1. Package details: wrapped in the black or white plastic spool, covered with the wax paper, then in PE bag and carton, put on pallet for shipment. Subject to the customer's requirements.
4. Delivery time: within 15~20days after receipt of the purchase order.
5. Suggestion: 25MTS in 1x20'GP FCL.
Our Considerate Services:
1. 24 hours on-line services to deal with any question you ask
2. professional technique team to support
3. sample can be supplied in 3 days
4. R&D team
5. Trial orders are available
6. Quality warranty
7. Accept the third-party inspection before shipment
8. Keep in dry circumstance
9. Remove the oil, rust, moisture and other impurities from the target surface before welding.
Our Company General Info:
* Since1972
* more than 6000 employees
* fixed assets: 7billion RMB
* to cover the area of 2.4 square kilometers
* annual production capacity: 0.15 million Ton
* the member of China Iron & Steel Association
* China Chamber of Commerce of Metals Minerals & Chemicals Imp. & Exp.
* top 500 enterprises in manufacture industry of China
* top 100 enterprises in Shandong Province
* top 10 enterprises in Weifang City
* the advanced equipments own advanced technique data, stabled operation, and high automation.
* welding wires are exported to worldwide. such as Middle East, Southeast Asia, Europe, Africa, North America and South America and other countries and districts.

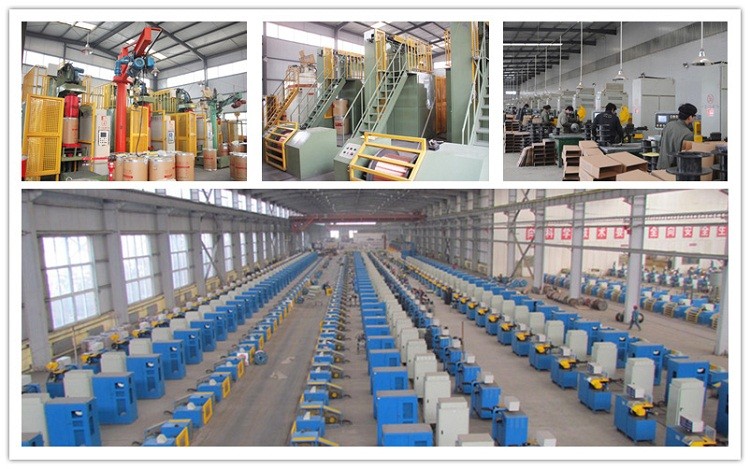

Factory Glance:
Warehouse Glance:
FAQ:
1. Are you a factory or a trading company?
Xunzhuo Co., Ltd. is a professional factory of welding wire.
2. Is OEM available?
Yes, OEM is available. We have professional designers to help your brand promotion.
3. Is the sample available?
Yes, samples are available for you to test the quality.
4. Have the products been tested before shipping?
Yes, all of our welding wires have been tested before shipping on board.
5. What's benefit will you bring?
Your clients will be satisfied of the quality.
Your clients continue placing orders.
Your can get high reputation from your markets and obtain more orders.
Any requirement, don'r feel free to contact me.
|
|
