High quality co2 gas shielded welding wire er70s-6 plastic spool

Name: High quality co2 gas shielded welding wire er70s6 plastic spool
Brand: xunzhuo
Price: 600 USD

Quality High quality co2 gas shielded welding wire er70s-6 plastic spool wholesale

Brand Name : xunzhuo

Model Number : mig mag welding wire er70s-6

Certification : ISO CE AWS SGS BV DNV, CCS, ABS, LR, DB, TUV, KR

Place of Origin : China

MOQ : 5Tons

Price : USD600-1000/Tons

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000tons per month

Delivery Time : 7-15days

Packaging Details : 5kg/spool 15kg/spool 20kg/spool

Material : Copper / Copper Alloy

Weight : 1kg , 5kgs , 15 kgs , 20 kgs

Product name : mig welding wire ER70S-6

Standard : AWS A.5.18 ER70S-6

Package : spool/carton/pallet

Name : ER70S-6 mig mag Welding Wire

Diameter : 0.6mm-1.6mm

Application : vehicles , bridge , building , mechanical,instruction

Certificate : DNV, CCS, ABS, BV, LR, DB, TUV, KR,CE

OEM : Accept OEM

Feature : Excellent Welding Performance

Spool materials : Plastic/Metal

Contact Now

High quality co2 gas shielded welding wire er70s-6 plastic spool

copper coated steel welding wire ER70S-6

Certificate	CE ISO9001, ABS,LR,CCS,DB ,TUV.etc
Packing Details	Packing Size: 275mm* 275mm* 105mm 300mm300mm105mm Outer Packing:1spool/ctn Every spool product is strongly packed by carton box with antirust paper inside. Container load: 72boxes/pallet ,60boxes/pallet, 22Pallets/20ft
MOQ	1 Pallet
Warranty	1 year
Payment	T/T,L/C,D/P, Western Union

Features:

ER70S-6 is a kind of mild steel copper coated welding wire, suitable for 100% CO2 and Argon& CO2 mixed gas protective welding with stable feasibility,

good welding seams, less spatters and excellent welding process properties.

Application:

Used to weld ship building steel(A,B,D,E,A36,D36,E36)and equivalent mild steel or 550Mpa grade mild alloy steel, such as container building,

construction machine, railway construction, pressure vessel for semi-auto or automatic gas shielded welding.

Conform with:

GB/T ER50-6 DIN SG2 JIS YGW12

AWS ER70S-6 BS A18 EN G3Si1

Package

Specification

Wire Tray

Weight

Φ1.0~1.6mm

D100mm D200mm

D270mm D300mm

K300mm

1kg, 5kg, 15kg,

17kg, 18kg, 20kg

Wire Chemical Composition (%)
C	Mn	Si	P	S	Cr	Ni	Cu
0.06~0.15	1.40~1.85	1.80~1.15	≤0.025	≤0.035	-	-	≤0.50

Deposited Metal Mechanical Properties

Yield Strength

σ0.2(Mpa)

Tensile Strength

σb(Mpa)

Elongation

δ5%

AKV Imapact Energy

(J)(-40℃)

≥420

≥500

≥22

≥90

Diameter of wire(mm) Wleding Current(A)
Φ1.0	Φ1.2	Φ1.4	Φ1.6
40~140	50~220	80~350	120~450

Matters needing attention:

1.Wire into the plant must be stored in dry conditions, can not open wire reel waterproof package.

2.Welding shall be removed before welding surface oil, rust,water and other impurities.

3.The CO2 gas protection, CO2gas purity 99.98%.

4.CO2 welding protective gas flow rate should be controlled at 20~25L/min.

5.Wire extension length should be controlled in the range of 15~25mm.

6.Preheatig before welding to weld 150℃~300℃, 700℃~740℃ tempering treatment only after.

About sample:

Free samples supplied, Postage will be on the customer’s charge. But postage could be deducted from the first order

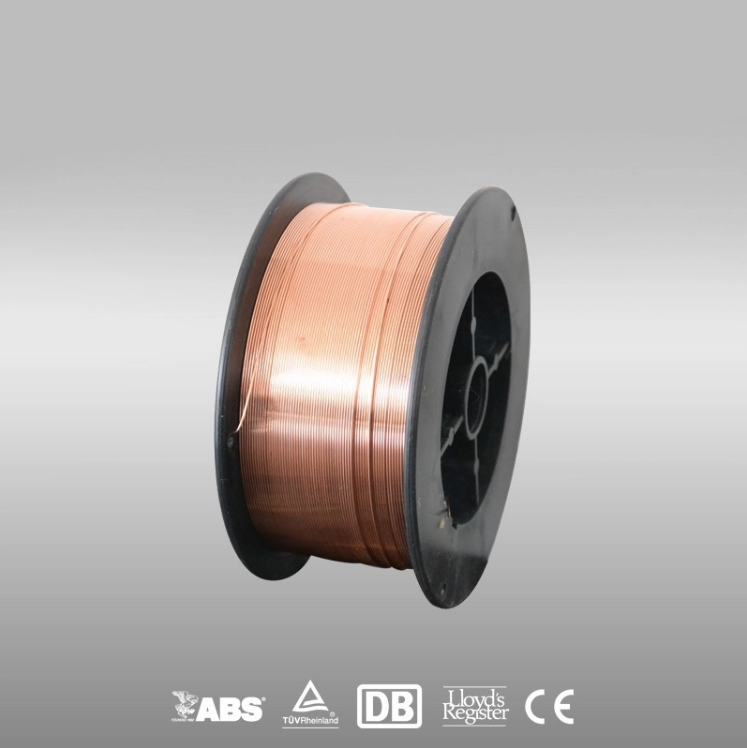

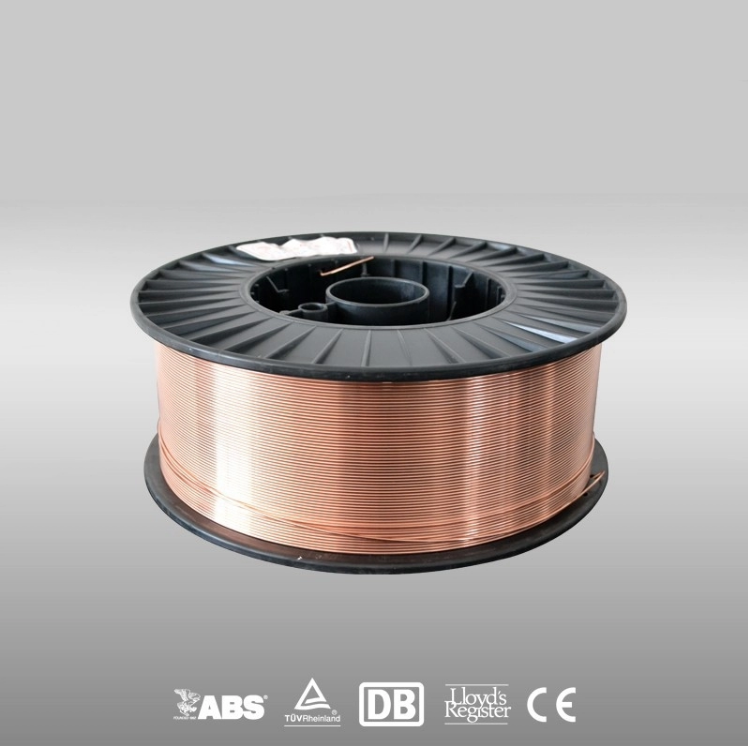

Product Show:

High quality co2 gas shielded welding wire er70s-6 plastic spool

Process of Production:

High quality co2 gas shielded welding wire er70s-6 plastic spool

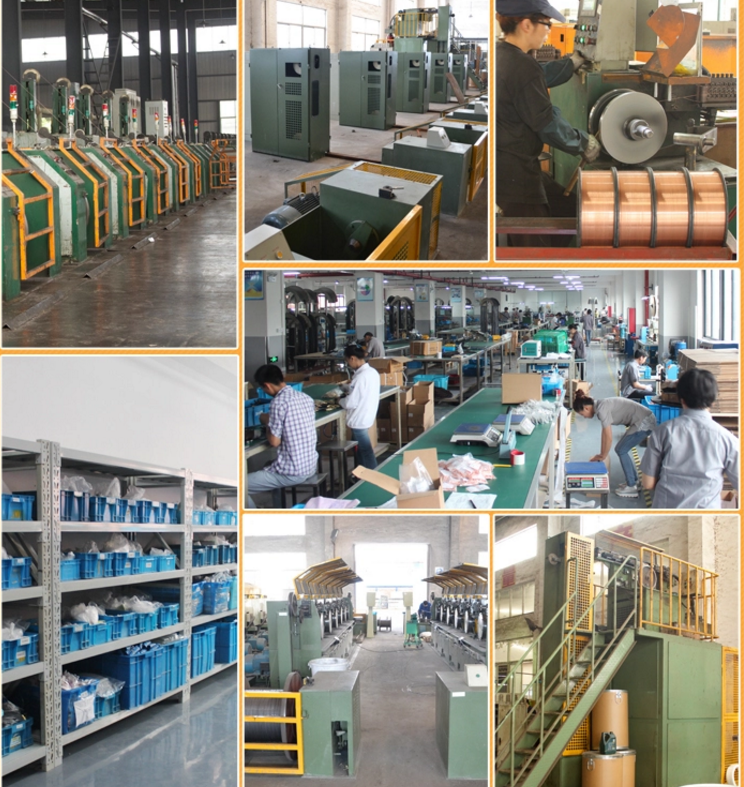

Factory Show:

Packaging:

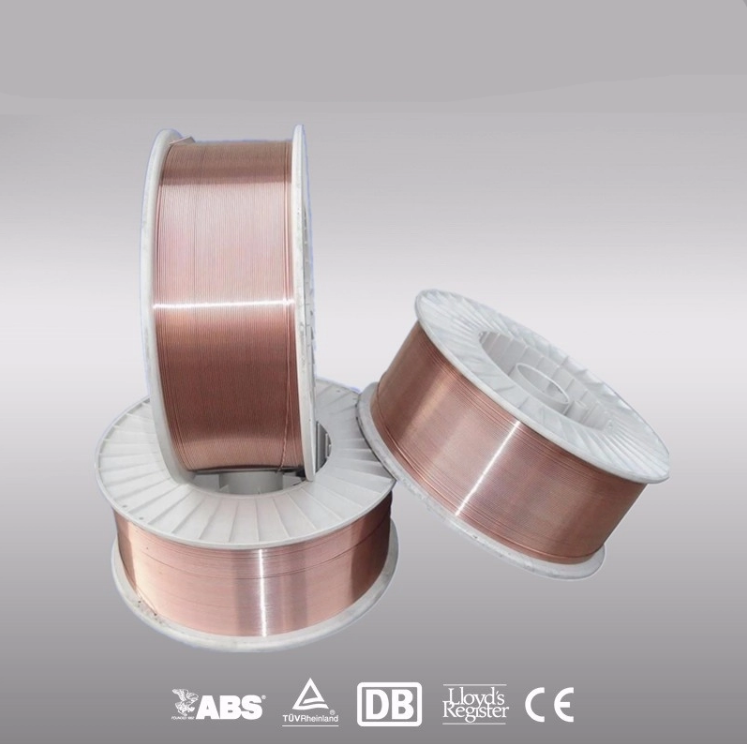

High quality co2 gas shielded welding wire er70s-6 plastic spool

Details of package: 1kg/5kg/15kg/20kg/spool, one spool into a carton.

Precision layer wire on the black plastic spool, covered with the anti-rust paper, with one or

two bags of silica gel in each spool and then shrink-wrapped in PE-foil, at last into the polybag.Packed into cartons and then put on wooden pallets ,72 cartons per pallets.

High quality co2 gas shielded welding wire er70s-6 plastic spool
